Spring02-扫描bean定义的过程

发表于 更新于 分类于
Spring扫描bean定义的过程

一、讲前扩展

​ 1、源码扩展之事件监听机制

​ 2、源码扩展之BeanFactoryPostProcessor

二、Spring扫描bean定义的源码分析

讲前拓展

事件监听机制

概述：本质上是观察者模式程序设计的体现

1
2
3
4
5
6
7
8
@Component
public class MyApplicationListener implements ApplicationListener{
    @Override
    public void onApplicationEvent(ApplicationEvent event){
        System.out.println(Thread.currentThread().getName()+"收到事件:"+event);

    }
}

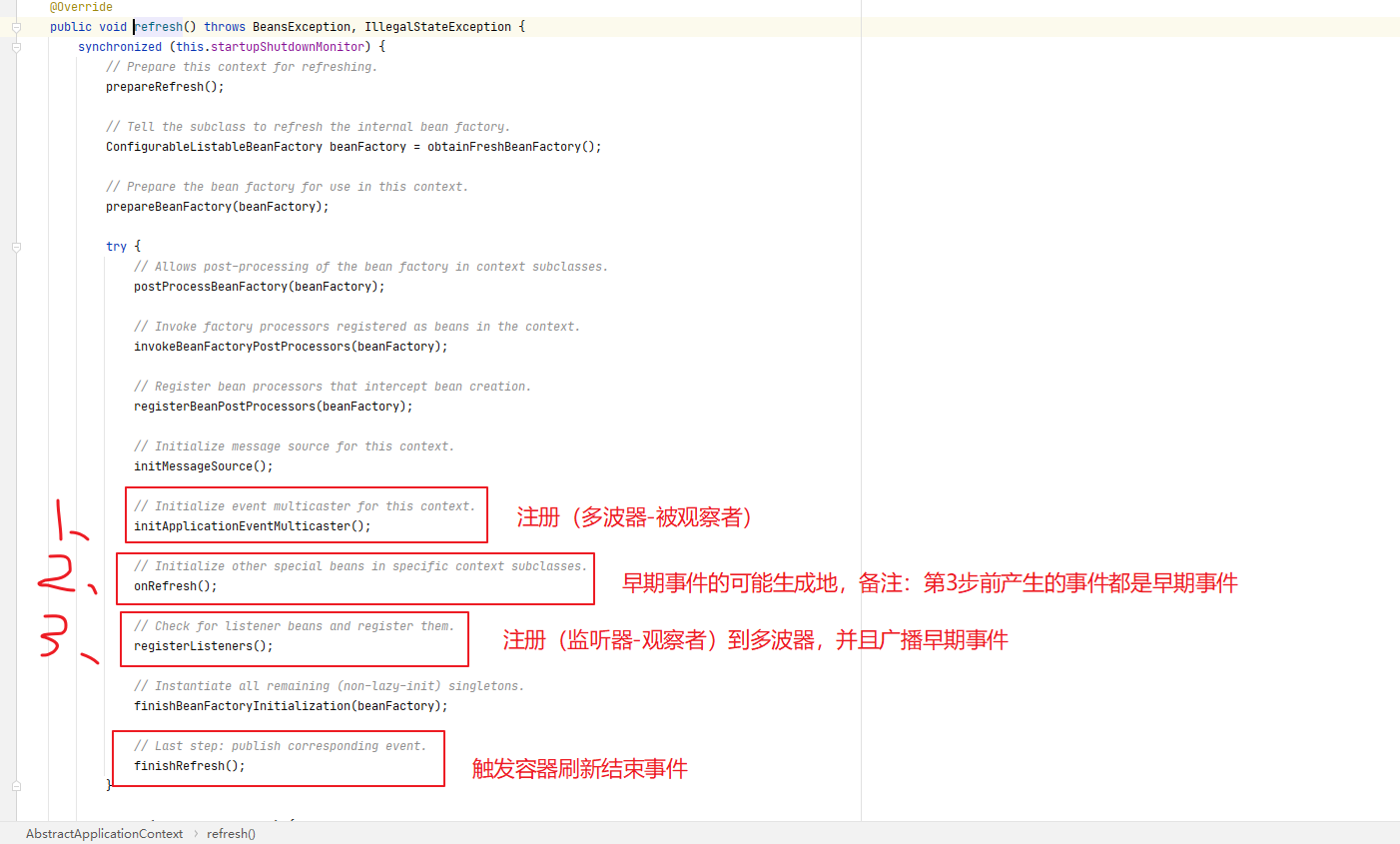

image-20210617231054221

  • i1>org.springframework.context.support.AbstractApplicationContext#refresh
    • i2>org.springframework.context.support.AbstractApplicationContext#initApplicationEventMulticaster（初始化事件多播器）
    • i3>org.springframework.context.support.AbstractApplicationContext#registerListeners（把事件监听器注册到多播器上去）

i2(初始化事件多播器源码解析)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
protected void initApplicationEventMulticaster() {
		ConfigurableListableBeanFactory beanFactory = getBeanFactory();
		/判断IOC容器中包含applicationEventMulticaster 事件多播器的Bean的name
		if (beanFactory.containsLocalBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME)) {
		    /创建一个applicationEventMulticaster的bean放在IOC 容器中,bean的name 为applicationEventMulticaster
			this.applicationEventMulticaster =beanFactory.getBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, ApplicationEventMulticaster.class);
			if (logger.isDebugEnabled()) {
				logger.debug("Using ApplicationEventMulticaster [" + this.applicationEventMulticaster + "]");
			}
		}
		/容器中不包含一个beanName 为applicationEventMulticaster的多播器组件
		else {
		    //创建一个SimpleApplicationEventMulticaster 多播器
			this.applicationEventMulticaster = new SimpleApplicationEventMulticaster(beanFactory);
			//注册到容器中
			beanFactory.registerSingleton(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, this.applicationEventMulticaster);
			if (logger.isDebugEnabled()) {
				logger.debug("Unable to locate ApplicationEventMulticaster with name '" +
						APPLICATION_EVENT_MULTICASTER_BEAN_NAME +
						"': using default [" + this.applicationEventMulticaster + "]");
			}
		}
	}​

i3：把容器中的监听器注册到多播器上去 源码解析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
protected void registerListeners() {
		//去容器中把applicationListener 捞取出来注册到多播器上去（系统的）
		for (ApplicationListener<?> listener : getApplicationListeners()) {
			getApplicationEventMulticaster().addApplicationListener(listener);
		}

        //我们自己实现了ApplicationListener 的组件
		String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);
		for (String listenerBeanName : listenerBeanNames) {
			getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);
		}

	    //在这里之前，我们早期想发布的事件 由于没有多播器没有发布，在这里我们总算有了自己的多播器，可以在这里发布早期堆积的事件了.
		Set<ApplicationEvent> earlyEventsToProcess = this.earlyApplicationEvents;
		this.earlyApplicationEvents = null;
		if (earlyEventsToProcess != null) {
			for (ApplicationEvent earlyEvent : earlyEventsToProcess) {
				getApplicationEventMulticaster().multicastEvent(earlyEvent);
			}
		}
	}

	------------------------------------如何发布事件-------------------------------------
	public void multicastEvent(final ApplicationEvent event, ResolvableType eventType) {
		ResolvableType type = (eventType != null ? eventType : resolveDefaultEventType(event));
		//获取到所有的监听器
		for (final ApplicationListener<?> listener : getApplicationListeners(event, type)) {
		    //看spring 容器中是否支持线程池 异步发送事件
			Executor executor = getTaskExecutor();
			if (executor != null) {
				executor.execute(new Runnable() {
					@Override
					public void run() {
						invokeListener(listener, event);
					}
				});
			}
			else {  //同步发送事件
				invokeListener(listener, event);
			}
		}
	}
	private void doInvokeListener(ApplicationListener listener, ApplicationEvent event) {
		try {
		    //调用对于listener的onApplicationEvent事件
			listener.onApplicationEvent(event);
		}
		catch (ClassCastException ex) {
			String msg = ex.getMessage();
			if (msg == null || matchesClassCastMessage(msg, event.getClass())) {
				// Possibly a lambda-defined listener which we could not resolve the generic event type for
				// -> let's suppress the exception and just log a debug message.
				Log logger = LogFactory.getLog(getClass());
				if (logger.isDebugEnabled()) {
					logger.debug("Non-matching event type for listener: " + listener, ex);
				}
			}
			else {
				throw ex;
			}
		}
	}

如何定制事件多波器并且在线程池中执行？

1
2
3
4
5
6
7
8
9
10
@Component("applicationEventMulticaster")
public class MyApplicationEventMulticaster extends SimpleApplicationEventMulticaster {
    public MyApplicationEventMulticaster(BeanFactory beanFactory) {
        super(beanFactory);
        setTaskExecutor(new ThreadPoolExecutor(2, 5,
                0L, TimeUnit.MILLISECONDS,
                new LinkedBlockingQueue<Runnable>(),
                Executors.defaultThreadFactory()));
    }
}

BeanFactoryPostProcessor

BeanFactory（创建bean的工厂）的后置处理器。

分两种

  1. BeanFactoryPostProcessor beanFactory把bean定义信息加载完毕，初始化前
    1. 可以对某些bean定义信息做一些特殊配置
  2. BeanDefinitionRegistryPostProcessor Spring内置bean定义信息加载后，初始化前
    1. 可以新增、删除bean定义信息等操作
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@Component
public class MyBeanDefinitionRegistryPostProcessor implements BeanDefinitionRegistryPostProcessor {
    @Override
    public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
        //(spring内置BeanDefinition读取后),bean初始化前，做一些新增beanDefinition等操作
        System.out.println("MyBeanDefinitionRegistryPostProcessor....postProcessBeanDefinitionRegistry");
        System.out.println("bean 的数量" + registry.getBeanDefinitionCount());
        registry.registerBeanDefinition("tooth",new RootBeanDefinition(TestController.class));

    }

    @Override
    public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
        //BeanDefinition读取之后，bean初始化前
        System.out.println("MyBeanDefinitionRegistryPostProcessor postProcessBeanFactory....bean 的数量" + beanFactory.getBeanDefinitionCount());

    }
}

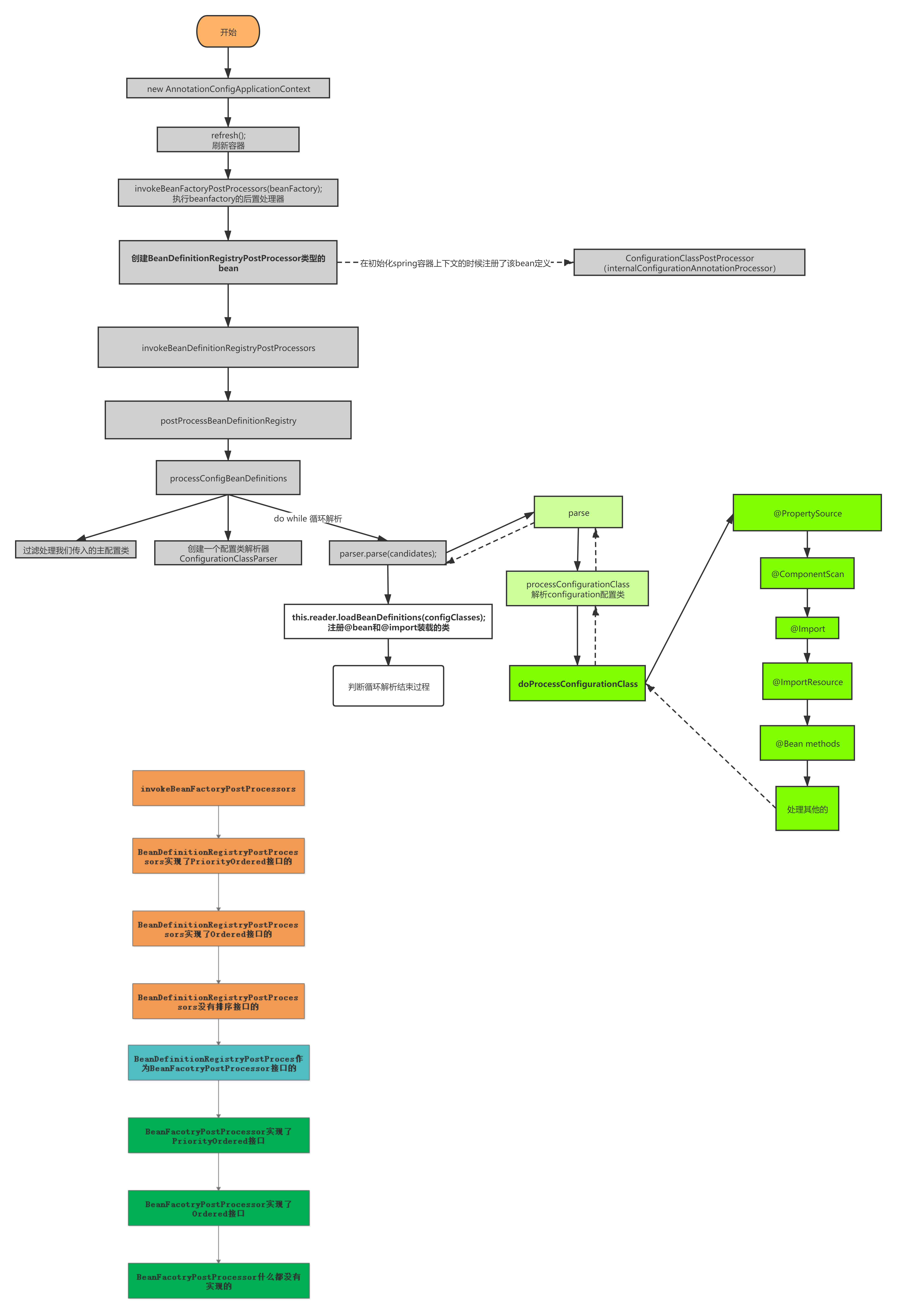

  • i1:org.springframework.context.support.AbstractApplicationContext#refresh
    • i2:org.springframework.context.support.AbstractApplicationContext#invokeBeanFactoryPostProcessors
      • >i3:org.springframework.context.support.PostProcessorRegistrationDelegate#invokeBeanFactoryPostProcessors
        • >i4:org.springframework.context.support.PostProcessorRegistrationDelegate#invokeBeanDefinitionRegistryPostProcessors
          • >i5:org.springframework.context.annotation.ConfigurationClassPostProcessor#processConfigBeanDefinitions
            • > i6:org.springframework.context.annotation.ConfigurationClassParser#parse
              • >i7:org.springframework.context.annotation.ConfigurationClassParser#processConfigurationClass
                • >i8:org.springframework.context.annotation.ConfigurationClassParser#doProcessConfigurationClass

i4标记处源码解析

org.springframework.context.support.PostProcessorRegistrationDelegate#invokeBeanFactoryPostProcessors

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
public static void invokeBeanFactoryPostProcessors(
			ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {

		// Invoke BeanDefinitionRegistryPostProcessors first, if any.
		Set<String> processedBeans = new HashSet<String>();

        //判断IOC 容器是不是BeanDefinitionRegistry的？
		if (beanFactory instanceof BeanDefinitionRegistry) {
		    //把IOC容器 强制转为BeanDefinitionRegistry类型的
			BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
			//创建一个普通的PostProcessors的list的组件
			List<BeanFactoryPostProcessor> regularPostProcessors = new LinkedList<BeanFactoryPostProcessor>();
			//创建一个BeanDefinitionRegistryPostProcessor类型的list
			List<BeanDefinitionRegistryPostProcessor> registryProcessors = new LinkedList<BeanDefinitionRegistryPostProcessor>();

            //处理容器硬编码(new 出来的)带入的beanFacotryPostProcessors
			for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
			    //判断是不是BeanDefinitionRegistryPostProcessor
				if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {

					BeanDefinitionRegistryPostProcessor registryProcessor =
							(BeanDefinitionRegistryPostProcessor) postProcessor;
					//调用BeanDefinitionRegistryPostProcessor的postProcessBeanDefinitionRegistry
					registryProcessor.postProcessBeanDefinitionRegistry(registry);
					//加入到list集合中
					registryProcessors.add(registryProcessor);
				}
				else {//判断不是BeanDefinitionRegistryPostProcessor
				    //加入到集合中
					regularPostProcessors.add(postProcessor);
				}
			}

            //创建一个当前注册的RegistryProcessors的集合
			List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<BeanDefinitionRegistryPostProcessor>();

			第一步:去容器中查询是否有BeanDefinitionRegistryPostProcessor类型的
			String[] postProcessorNames =
					beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
			for (String ppName : postProcessorNames) {
			    //判断是不是实现了PriorityOrdered接口的
				if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
				    //添加到currentRegistryProcessors的集合中
					currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
					//添加到processedBeans的集合中
					processedBeans.add(ppName);
				}
			}
			//进行排序
			sortPostProcessors(currentRegistryProcessors, beanFactory);
			registryProcessors.addAll(currentRegistryProcessors);
			//调用BeanDefinitionRegistryPostProcessors的postProcessBeanDefinitionRegistry方法
			invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
			currentRegistryProcessors.clear();

			// Next, invoke the BeanDefinitionRegistryPostProcessors that implement Ordered.
			第二步:去容器中查询是否有BeanDefinitionRegistryPostProcessor类型的
			for (String ppName : postProcessorNames) {
			    //排除被处理过的，并且实现了Ordered接口的
				if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
					currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
					//加到以处理的list中
					processedBeans.add(ppName);
				}
			}
			sortPostProcessors(currentRegistryProcessors, beanFactory);
			registryProcessors.addAll(currentRegistryProcessors);
			//调用BeanDefinitionRegistryPostProcessors的postProcessBeanDefinitionRegistry方法
			invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
			currentRegistryProcessors.clear();

			//调用普通的BeanDefinitionRegistryPostProcessors没用实现 PriorithOrdered和Ordered接口
			boolean reiterate = true;
			while (reiterate) {
				reiterate = false;
				postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
				for (String ppName : postProcessorNames) {
					if (!processedBeans.contains(ppName)) {
						currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
						processedBeans.add(ppName);
						reiterate = true;
					}
				}
				sortPostProcessors(currentRegistryProcessors, beanFactory);
				registryProcessors.addAll(currentRegistryProcessors);
				invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
				currentRegistryProcessors.clear();
			}

			//调用上诉实现了也实现了BeanFactoryPostProcessors的接口
			invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
			invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
		}

		else {
			// Invoke factory processors registered with the context instance.
			invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
		}

        //去IOC 容器中获取BeanFactoryPostProcessor 类型的
		String[] postProcessorNames =
				beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);

        //分离实现了PriorityOrdered接口的 Ordered 接口的   普通的
		List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<BeanFactoryPostProcessor>();
		List<String> orderedPostProcessorNames = new ArrayList<String>();
		List<String> nonOrderedPostProcessorNames = new ArrayList<String>();

		for (String ppName : postProcessorNames) {
			if (processedBeans.contains(ppName)) {
				// skip - already processed in first phase above
			}
			else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
				priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
			}
			else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
				orderedPostProcessorNames.add(ppName);
			}
			else {
				nonOrderedPostProcessorNames.add(ppName);
			}
		}

		//调用 PriorityOrdered.
		sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
		invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);

		//调用 Ordered.
		List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<BeanFactoryPostProcessor>();
		for (String postProcessorName : orderedPostProcessorNames) {
			orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
		}
		sortPostProcessors(orderedPostProcessors, beanFactory);
		invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);

	    //调用普通的
		List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<BeanFactoryPostProcessor>();
		for (String postProcessorName : nonOrderedPostProcessorNames) {
			nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
		}
		invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);

		// Clear cached merged bean definitions since the post-processors might have
		// modified the original metadata, e.g. replacing placeholders in values...
		beanFactory.clearMetadataCache();
	}

i5标记处源码解析:

org.springframework.context.annotation.ConfigurationClassPostProcessor#processConfigBeanDefinitions

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
		List<BeanDefinitionHolder> configCandidates = new ArrayList<BeanDefinitionHolder>();
		//去IOC容器中的获取Bean定义的名称
		//	private volatile List<String> beanDefinitionNames = new ArrayList<String>(256);

        //没有解析之前，系统候选的bean定义配置(有自己的 有系统自带的)
		String[] candidateNames = registry.getBeanDefinitionNames();

        //循环Bean定义的名称 找出自己的传入的主配置类的bean定义信息  configCandidates
		for (String beanName : candidateNames) {
		    //去bean定义的map中获取对应的Bean定义对象
		    //	private final Map<String, BeanDefinition> beanDefinitionMap = new ConcurrentHashMap<String, BeanDefinition>(256);
			BeanDefinition beanDef = registry.getBeanDefinition(beanName);
			//检查该bean定义对象是不是用来描述配置类
			if (ConfigurationClassUtils.isFullConfigurationClass(beanDef) ||
					ConfigurationClassUtils.isLiteConfigurationClass(beanDef)) {
				if (logger.isDebugEnabled()) {
					logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
				}
			}
			else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
				configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
			}
		}

		// Return immediately if no @Configuration classes were found
		if (configCandidates.isEmpty()) {
			return;
		}

		//检查配置类排序
		Collections.sort(configCandidates, new Comparator<BeanDefinitionHolder>() {
			@Override
			public int compare(BeanDefinitionHolder bd1, BeanDefinitionHolder bd2) {
				int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
				int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
				return (i1 < i2) ? -1 : (i1 > i2) ? 1 : 0;
			}
		});

		// bean的名称生成策略
		SingletonBeanRegistry sbr = null;
		if (registry instanceof SingletonBeanRegistry) {
			sbr = (SingletonBeanRegistry) registry;
			if (!this.localBeanNameGeneratorSet && sbr.containsSingleton(CONFIGURATION_BEAN_NAME_GENERATOR)) {
				BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(CONFIGURATION_BEAN_NAME_GENERATOR);
				this.componentScanBeanNameGenerator = generator;
				this.importBeanNameGenerator = generator;
			}
		}

		/***创建一个配置类解析器
		1)元数据读取器工厂
		this.metadataReaderFactory = metadataReaderFactory;
		2)问题报告器
		this.problemReporter = problemReporter;
		//设置环境
		this.environment = environment;
		3)资源加载器
		this.resourceLoader = resourceLoader;
		4）创建了一个组件扫描器
		this.componentScanParser = new ComponentScanAnnotationParser(
				environment, resourceLoader, componentScanBeanNameGenerator, registry);
		this.conditionEvaluator = new ConditionEvaluator(registry, environment, resourceLoader);
		****/

		ConfigurationClassParser parser = new ConfigurationClassParser(
				this.metadataReaderFactory, this.problemReporter, this.environment,
				this.resourceLoader, this.componentScanBeanNameGenerator, registry);


        //将要被解析的配置类(把自己的configCandidates加入到 候选的)
		Set<BeanDefinitionHolder> candidates = new LinkedHashSet<BeanDefinitionHolder>(configCandidates);
		//已经被解析的配置类(由于do while 那么mainclass就一定会被解析,被解析的size为1)
		Set<ConfigurationClass> alreadyParsed = new HashSet<ConfigurationClass>(configCandidates.size());
		do {
		    //通过配置解析器真正的解析配置类
			parser.parse(candidates);

			//进行校验
			parser.validate();

            //获取ConfigClass (把解析过的配置bean定义信息获取出来)
			Set<ConfigurationClass> configClasses = new LinkedHashSet<ConfigurationClass>(parser.getConfigurationClasses());
			configClasses.removeAll(alreadyParsed);

			// Read the model and create bean definitions based on its content
			if (this.reader == null) {
				this.reader = new ConfigurationClassBeanDefinitionReader(
						registry, this.sourceExtractor, this.resourceLoader, this.environment,
						this.importBeanNameGenerator, parser.getImportRegistry());
			}

			//@CompentScan是直接注册Bean定义信息的    但是通过获取@Import,@Bean这种的注解还没有注册的bean定义,
			this.reader.loadBeanDefinitions(configClasses);
			//把系统解析过我们自己的组件放在alreadyParsed
			alreadyParsed.addAll(configClasses);
            //清除解析过的 配置文件
			candidates.clear();

			//已经注册的bean定义个数大于最新 开始系统+主配置类的(发生过解析)
			if (registry.getBeanDefinitionCount() > candidateNames.length) {
			    //获取系统+自己解析的+mainconfig的bean定义信息
				String[] newCandidateNames = registry.getBeanDefinitionNames();
				//系统的+mainconfig的bean定义信息
				Set<String> oldCandidateNames = new HashSet<String>(Arrays.asList(candidateNames));

				//已经解析过的自己的组件
				Set<String> alreadyParsedClasses = new HashSet<String>();
				for (ConfigurationClass configurationClass : alreadyParsed) {
					alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
				}

				for (String candidateName : newCandidateNames) {
				    //老的（系统+mainconfig） 不包含解析的
					if (!oldCandidateNames.contains(candidateName)) {
					    //把当前bean定义获取出来
						BeanDefinition bd = registry.getBeanDefinition(candidateName);
						//检查是否为解析过的
						if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
								!alreadyParsedClasses.contains(bd.getBeanClassName())) {
							//若不是解析过且通过检查的     把当前的bean定义 加入到candidates中
							candidates.add(new BeanDefinitionHolder(bd, candidateName));
						}
					}
				}
				把解析过的赋值给原来的
				candidateNames = newCandidateNames;
			}
		}
		while (!candidates.isEmpty());  //还存主没有解析过的  再次解析

		// Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
		if (sbr != null) {
			if (!sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
				sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
			}
		}

		if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
			((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
		}
	}

i6标记处源码解析 :

org.springframework.context.annotation.ConfigurationClassParser#parse

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
public void parse(Set<BeanDefinitionHolder> configCandidates) {
		this.deferredImportSelectors = new LinkedList<DeferredImportSelectorHolder>();

		for (BeanDefinitionHolder holder : configCandidates) {
			BeanDefinition bd = holder.getBeanDefinition();
			try {
			    //注解形式的bean定义信息
				if (bd instanceof AnnotatedBeanDefinition) {
				    //解析配置类的bean定义
					parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
				}
				else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
					parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
				}
				else {
					parse(bd.getBeanClassName(), holder.getBeanName());
				}
			}
			catch (BeanDefinitionStoreException ex) {
				throw ex;
			}
			catch (Throwable ex) {
				throw new BeanDefinitionStoreException(
						"Failed to parse configuration class [" + bd.getBeanClassName() + "]", ex);
			}
		}

		processDeferredImportSelectors();
	}​


org.springframework.context.annotation.ConfigurationClassParser#parse
	org.springframework.context.annotation.ConfigurationClassParser#processConfigurationClass

protected void processConfigurationClass(ConfigurationClass configClass) throws IOException {
		if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
			return;
		}

		ConfigurationClass existingClass = this.configurationClasses.get(configClass);
		if (existingClass != null) {
			if (configClass.isImported()) {
				if (existingClass.isImported()) {
					existingClass.mergeImportedBy(configClass);
				}
				// Otherwise ignore new imported config class; existing non-imported class overrides it.
				return;
			}
			else {
				// Explicit bean definition found, probably replacing an import.
				// Let's remove the old one and go with the new one.
				this.configurationClasses.remove(configClass);
				for (Iterator<ConfigurationClass> it = this.knownSuperclasses.values().iterator(); it.hasNext();) {
					if (configClass.equals(it.next())) {
						it.remove();
					}
				}
			}
		}

		//递归处理配置类及其超类层次结构。
		SourceClass sourceClass = asSourceClass(configClass);
		do {
			sourceClass = doProcessConfigurationClass(configClass, sourceClass);
		}
		while (sourceClass != null);

		this.configurationClasses.put(configClass, configClass);
	}


org.springframework.context.annotation.ConfigurationClassParser#doProcessConfigurationClass
	protected final SourceClass doProcessConfigurationClass(ConfigurationClass configClass, SourceClass sourceClass)
			throws IOException {

		// Recursively process any member (nested) classes first
		processMemberClasses(configClass, sourceClass);

		//处理@PropertySource注解
		for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
				sourceClass.getMetadata(), PropertySources.class,
				org.springframework.context.annotation.PropertySource.class)) {
			if (this.environment instanceof ConfigurableEnvironment) {
				processPropertySource(propertySource);
			}
			else {
				logger.warn("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
						"]. Reason: Environment must implement ConfigurableEnvironment");
			}
		}

		//处理@ComponentScan注解

		//解析@ComponentScans注解的属性 封装成一个一个的componentscan对象
		Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
		if (!componentScans.isEmpty() &&!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {

			//循环componentScans的set
			for (AnnotationAttributes componentScan : componentScans) {
				// 立即执行扫描解析
				Set<BeanDefinitionHolder> scannedBeanDefinitions =this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
				//检查任何其他配置类的扫描定义集，并在需要时递归解析
				for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
				    //获取原始的bean定义信息
					BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
					if (bdCand == null) {
						bdCand = holder.getBeanDefinition();
					}
					//检查当前的bean定义信息是不是配置类  比如MainConfig的bean定义信息
					if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
					    //递归调用来解析MainConfig,解析出来配置类的中导入的bean定义信息
						parse(bdCand.getBeanClassName(), holder.getBeanName());
					}
				}
			}
		}

		//处理@Import注解   解析Import 注解的ImportSelector  ImportBeanDefinitionRegister,@Bean这种
		//存放在ConfigClass中
		processImports(configClass, sourceClass, getImports(sourceClass), true);

		//处理 @ImportResource annotations
		if (sourceClass.getMetadata().isAnnotated(ImportResource.class.getName())) {
			AnnotationAttributes importResource =
					AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
			String[] resources = importResource.getStringArray("locations");
			Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
			for (String resource : resources) {
				String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
				configClass.addImportedResource(resolvedResource, readerClass);
			}
		}

		// 处理  @Bean methods
		Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
		for (MethodMetadata methodMetadata : beanMethods) {
			configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
		}

		//处理接口
		processInterfaces(configClass, sourceClass);

		// 处理超类的
		if (sourceClass.getMetadata().hasSuperClass()) {
			String superclass = sourceClass.getMetadata().getSuperClassName();
			if (!superclass.startsWith("java") && !this.knownSuperclasses.containsKey(superclass)) {
				this.knownSuperclasses.put(superclass, configClass);
				// Superclass found, return its annotation metadata and recurse
				return sourceClass.getSuperClass();
			}
		}

		// No superclass -> processing is complete
		return null;
	}

//通过组件扫描器进行真正的解析
org.springframework.context.annotation.ComponentScanAnnotationParser#parse
Set<BeanDefinitionHolder>

	public Set<BeanDefinitionHolder> parse(AnnotationAttributes componentScan, final String declaringClass) {
		Assert.state(this.environment != null, "Environment must not be null");
		Assert.state(this.resourceLoader != null, "ResourceLoader must not be null");

        //创建一个类路径下的bean定义扫描器
		ClassPathBeanDefinitionScanner scanner = new ClassPathBeanDefinitionScanner(this.registry,
				componentScan.getBoolean("useDefaultFilters"), this.environment, this.resourceLoader);

        //为扫描器设置一个bean 名称的生成器
		Class<? extends BeanNameGenerator> generatorClass = componentScan.getClass("nameGenerator");
		boolean useInheritedGenerator = (BeanNameGenerator.class == generatorClass);
		scanner.setBeanNameGenerator(useInheritedGenerator ? this.beanNameGenerator :
				BeanUtils.instantiateClass(generatorClass));


		ScopedProxyMode scopedProxyMode = componentScan.getEnum("scopedProxy");
		if (scopedProxyMode != ScopedProxyMode.DEFAULT) {
			scanner.setScopedProxyMode(scopedProxyMode);
		}
		else {
			Class<? extends ScopeMetadataResolver> resolverClass = componentScan.getClass("scopeResolver");
			scanner.setScopeMetadataResolver(BeanUtils.instantiateClass(resolverClass));
		}

		scanner.setResourcePattern(componentScan.getString("resourcePattern"));

		for (AnnotationAttributes filter : componentScan.getAnnotationArray("includeFilters")) {
			for (TypeFilter typeFilter : typeFiltersFor(filter)) {
				scanner.addIncludeFilter(typeFilter);
			}
		}
		for (AnnotationAttributes filter : componentScan.getAnnotationArray("excludeFilters")) {
			for (TypeFilter typeFilter : typeFiltersFor(filter)) {
				scanner.addExcludeFilter(typeFilter);
			}
		}

		boolean lazyInit = componentScan.getBoolean("lazyInit");
		if (lazyInit) {
			scanner.getBeanDefinitionDefaults().setLazyInit(true);
		}

		Set<String> basePackages = new LinkedHashSet<String>();
		String[] basePackagesArray = componentScan.getStringArray("basePackages");
		for (String pkg : basePackagesArray) {
			String[] tokenized = StringUtils.tokenizeToStringArray(this.environment.resolvePlaceholders(pkg),
					ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);
			basePackages.addAll(Arrays.asList(tokenized));
		}
		for (Class<?> clazz : componentScan.getClassArray("basePackageClasses")) {
			basePackages.add(ClassUtils.getPackageName(clazz));
		}
		if (basePackages.isEmpty()) {
			basePackages.add(ClassUtils.getPackageName(declaringClass));
		}

		scanner.addExcludeFilter(new AbstractTypeHierarchyTraversingFilter(false, false) {
			@Override
			protected boolean matchClassName(String className) {
				return declaringClass.equals(className);
			}
		});
		//真正扫描器扫描指定路径
		return scanner.doScan(StringUtils.toStringArray(basePackages));
	}


//创建类路径下的bean定义扫描器
public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, boolean useDefaultFilters,
			Environment environment, ResourceLoader resourceLoader) {

		Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
		this.registry = registry;

        //使用默认的扫描规则
		if (useDefaultFilters) {
			registerDefaultFilters();
		}
		//设置环境变量
		setEnvironment(environment);
		//设置资源加载器
		setResourceLoader(resourceLoader);
	}

	//默认的扫描规则
	protected void registerDefaultFilters() {
	    //添加了Componet的解析，这就是我们为啥@Componet @Respository @Service @Controller的  @AspectJ
		this.includeFilters.add(new AnnotationTypeFilter(Component.class));
		ClassLoader cl = ClassPathScanningCandidateComponentProvider.class.getClassLoader();
		try {
		    //添加Jsr 250规范的注解
			this.includeFilters.add(new AnnotationTypeFilter(
					((Class<? extends Annotation>) ClassUtils.forName("javax.annotation.ManagedBean", cl)), false));
			logger.debug("JSR-250 'javax.annotation.ManagedBean' found and supported for component scanning");
		}
		catch (ClassNotFoundException ex) {
			// JSR-250 1.1 API (as included in Java EE 6) not available - simply skip.
		}
		try {
		    //JSR330的注解
			this.includeFilters.add(new AnnotationTypeFilter(
					((Class<? extends Annotation>) ClassUtils.forName("javax.inject.Named", cl)), false));
			logger.debug("JSR-330 'javax.inject.Named' annotation found and supported for component scanning");
		}
		catch (ClassNotFoundException ex) {
			// JSR-330 API not available - simply skip.
		}
	}

	//使用扫描器去真正的扫描类,返回Set<BeanDefinitionHolder>
	org.springframework.context.annotation.ClassPathBeanDefinitionScanner#doScan

	protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
		Assert.notEmpty(basePackages, "At least one base package must be specified");
		//创建一个Bean定义 holder的 set
		Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<BeanDefinitionHolder>();
		//循环扫描路径
		for (String basePackage : basePackages) {
		    //找到候选的组件集合
			Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
			//循环候选组件集合
			for (BeanDefinition candidate : candidates) {
				ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
				candidate.setScope(scopeMetadata.getScopeName());
				//生成bean的名称
				String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
				//判断是不是抽象的beand定义
				if (candidate instanceof AbstractBeanDefinition) {
					postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
				}
				//注解的bean定义西悉尼
				if (candidate instanceof AnnotatedBeanDefinition) {
					AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
				}

				if (checkCandidate(beanName, candidate)) { //检查当前的和存主的bean定义是否有冲突
				    //把候选的组件封装成BeanDefinitionHolder
					BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
					definitionHolder =AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
					//加入到bean定义的集合中
					beanDefinitions.add(definitionHolder);
					//注册当前的bean定义信息
					registerBeanDefinition(definitionHolder, this.registry);
				}
			}
		}
		return beanDefinitions;
	}


org.springframework.context.annotation.ClassPathScanningCandidateComponentProvider#findCandidateComponents
    //找到候选的组件 返回Set<BeanDefinition>的集合

	public Set<BeanDefinition> findCandidateComponents(String basePackage) {
		//候选的bean定义信息
		Set<BeanDefinition> candidates = new LinkedHashSet<BeanDefinition>();
		try {
		    //拼接需要扫描包下面的类的路径   classpath*:com/tuling/testapplicationlistener/**/*.class
			String packageSearchPath = ResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX +
					resolveBasePackage(basePackage) + '/' + this.resourcePattern;
			//把路径解析成一个个.class文件
			Resource[] resources = this.resourcePatternResolver.getResources(packageSearchPath);
			boolean traceEnabled = logger.isTraceEnabled();
			boolean debugEnabled = logger.isDebugEnabled();

			//循环.class文件的resource对象
			for (Resource resource : resources) {
				if (traceEnabled) {
					logger.trace("Scanning " + resource);
				}
				//判断class文件是否可读
				if (resource.isReadable()) {
					try {
					    //把resource对象 变为一个类的原信息读取器
						MetadataReader metadataReader = this.metadataReaderFactory.getMetadataReader(resource);
						//判断类的源信息读取器是否为候选的组件
						if (isCandidateComponent(metadataReader)) {  //是候选的组件
						    //把类元信息读取器封装成一个ScannedGenericBeanDefinition
							ScannedGenericBeanDefinition sbd = new ScannedGenericBeanDefinition(metadataReader);
							sbd.setResource(resource);
							sbd.setSource(resource);
							//是候选的组件
							if (isCandidateComponent(sbd)) {
								if (debugEnabled) {
									logger.debug("Identified candidate component class: " + resource);
								}
								//把当前解析出来的定义的加入到 BeanDefinition的集合中
								candidates.add(sbd);
							}
							else {
								if (debugEnabled) {
									logger.debug("Ignored because not a concrete top-level class: " + resource);
								}
							}
						}
						else {
							if (traceEnabled) {
								logger.trace("Ignored because not matching any filter: " + resource);
							}
						}
					}
					catch (Throwable ex) {
						throw new BeanDefinitionStoreException(
								"Failed to read candidate component class: " + resource, ex);
					}
				}
				else {
					if (traceEnabled) {
						logger.trace("Ignored because not readable: " + resource);
					}
				}
			}
		}
		catch (IOException ex) {
			throw new BeanDefinitionStoreException("I/O failure during classpath scanning", ex);
		}
		return candidates;
	}

//是不是需要扫描的组件
org.springframework.context.annotation.ClassPathScanningCandidateComponentProvider#isCandidateComponent
	protected boolean isCandidateComponent(MetadataReader metadataReader) throws IOException {
		//是不是被排除的
		for (TypeFilter tf : this.excludeFilters) {
			if (tf.match(metadataReader, this.metadataReaderFactory)) {
				return false;
			}
		}
		//在被包含的组件
		for (TypeFilter tf : this.includeFilters) {
			if (tf.match(metadataReader, this.metadataReaderFactory)) {
				return isConditionMatch(metadataReader);
			}
		}
		return false;
	}

	//是否能够进行@Conditional判断
    org.springframework.context.annotation.ClassPathScanningCandidateComponentProvider#isConditionMatch
	private boolean isConditionMatch(MetadataReader metadataReader) {
		if (this.conditionEvaluator == null) {
			this.conditionEvaluator = new ConditionEvaluator(getRegistry(), getEnvironment(), getResourceLoader());
		}
		return !this.conditionEvaluator.shouldSkip(metadataReader.getAnnotationMetadata());
	}

BeanDefinition加载过程

概述：

1、new AnnotationConfigApplicationContext时注入了实现priority接口的BeanDefinitionRegistryPostProcessor的工厂bean定义注册后置处理器：ConfigurationClassPostProcessor

2、invokeBeanFactoryPostProcessors(beanFactory); 执行时扫描到ConfigurationClassPostProcessor

且调用执行

3、ConfigurationClassPostProcessor.postProcessBeanDefinitionRegistry的作用是

  1. 识别我们传入的标有@Configuration的类
  2. 创建ConfigurationClassParser
  3. 解析配置类
    1. @ComponentScan
    2. @Import
    3. Bean
    4. @PropertySource
    5. @ImportResource
    6. 处理其他的
